How Phone Cases are Made: A Step-by-Step Manufacturing Guide

A phone case might appear straightforward, yet it takes a lot of thought to create a case that fits perfectly, keeps the phone safe, enables wireless charging, and is comfortable to hold. Between the initial CAD model and the final product, a number of manufacturing processes collaborate.

Then, how are phone cases manufactured? The solution is based on the content, design, level of protection, and volume of production. Injection molding, overmolding, compression molding, printing, machining, and secondary assembly can be used in modern cases. Injection molding is among the most widespread techniques when producing large quantities of products since it is capable of providing uniform sizes and reproducible outcomes.

In the case of brands producing custom products, the manufacturing process of the phone case typically starts with the design of the product and concludes with the inspection, packaging, and delivery.

Every Phone Case Design Starts with the Smartphone

A molding machine is not the first step in the production of phone cases. It is product engineering. The dimensions, camera placement, buttons, ports, speakers, wireless charging area, and corner geometry are the first dimensions studied by a manufacturer. The measurements are then translated into a detailed CAD model, e.g., SolidWorks or Autodesk Fusion 360.

The design should allow the phone to have sufficient space to fit without being loose. Meanwhile, the case must not put undue pressure on sensitive regions.

Engineers also consider:

Wall thickness
Draft angle
Corner radius
Camera clearance
Button alignment
Port openings
Parting lines
Ejector locations
Material shrinkage

This phase significantly impacts the overall process of producing the phone case. A bad design may cause warpage, sink marks, short shots, difficulty ejecting, or poor fit in the future.

Construction of the Mold to Be Used in Production

After approval of the design, the manufacturer comes up with the injection mold. It is among the key steps in the phone case factory. The shape and repeatability of all the molded parts are controlled by the mold.

A typical injection mold has parts that include:

Mold cavities
Core sections
Sprue and runner system
Gates
Cooling channels
Ejector pins
Guide systems

The mold should enable molten plastic to flow evenly inside the mold. Weld lines, warpage, air traps, uneven shrinkage, or dimensional variation may be caused by poor placement of the gate or insufficient cooling. In complex products, the manufacturers can simulate the mold flow using software like Autodesk Moldflow or Moldex3D and then machine the final tooling.

Injection Molding Molds Material into a Case

Plastic pellets are injected into an injection molding machine. The substance is heated until it is in an appropriate state of melt. The molten polymer is then forced into the mold cavity by a screw, which forces the polymer through the system of runners and gates. The precise processing conditions are based on the design of the polymer and product. The factors that are controlled by engineers include the melt temperature, the mold temperature, the injection pressure, the injection speed, the holding pressure, and the cooling time.

A molded case might not cool uniformly. Overcooling time, however, may decrease the efficiency of production.
Once the polymer is cooled to a sufficient degree to hold its shape, the tool is opened by ejector pins that force the component to be ejected out of the tool.
This is a repeatable process that makes injection molding appropriate in the production of smartphone cases in high volumes.

Adding Magnets, Rings, and Functional Components

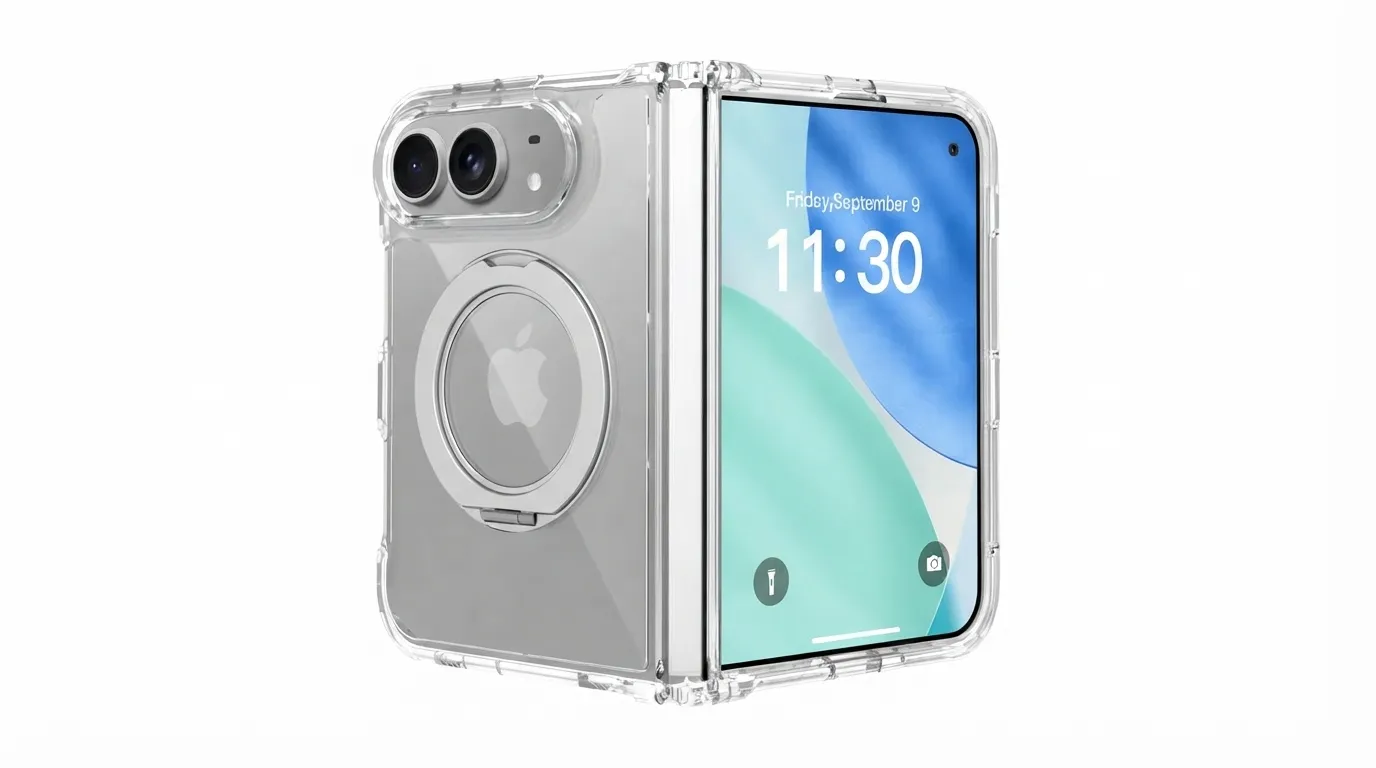

The Junchi iPhone 18 Fold case reflects this change in the design of cases to be multi-functional. It is a PC + TPU structure that has embedded magnets and a 360-degree rotating metal ring kickstand. The design can be used in horizontal and vertical hands-free viewing and is designed to be compatible with MagSafe charging.

Once the molded body is made, it can be further assembled with other parts in secondary assembly.
In the case of a magnetic, polarity and location of the magnet are important. Magnetic alignment and charging performance can be affected by a minor positioning error.
The same thing can be said about a rotating ring. The mounting area should be strong enough and have the correct dimensions to ensure that the ring is able to rotate freely without loosening.

Finishing Touches to the Case

The process of manufacturing does not cease when the molded shell exits the machine. Surface finishing and branding may be the next step. Depending on the design, manufacturers can use matte, glossy, frosted, textured, or other surface treatments.

Branding may also be implemented using methods like:

Silk printing
UV printing
Laser marking
Pattern printing

Color precision can also be important in the case of custom phone case manufacturing. Junchi offers Pantone color matching, custom colors, logo placement, and various surface finishes to its case programs.

These alternatives enable OEM and ODM clients to design cases that are compatible with a particular brand image rather than depending on standardized designs.

Factory Sample to Large-Scale Production

A manufacturer typically transitions between CAD development and samples, mold trials, inspection, production approval, and repeat manufacturing. This aids in detecting issues before huge volumes are manufactured.
Junchi states that it provides custom mold development, material selection, surface engineering, and scalable OEM and ODM production. BSCI and ISO 9001 certifications are also listed on its webpage.
For companies that build their own cases, it may be easier to work with a manufacturer that can handle the design, tooling, choice of materials, molding, finishing, and inspection in a single production process.

The Making of a Better Phone Case

The relationship between product design and material science, mold engineering, processing conditions, secondary assembly, and quality inspection yields the best results. An example like the obvious MagSafe iPhone 18 Fold by Junchi illustrates how current products can incorporate rigid PC, flexible TPU, raised protection, magnetic capability, and a rotating metal stand into a single compact design.

In case you are designing a custom case, Junchi can assist you in the process of product structure and mold development, including the selection of materials, finishing, and OEM or ODM manufacturing.

Conclusion

In this blog that describe how are phone cases manufactured? A phone case is worth the money because of the details that users might not even pay attention to. The correct material, proper mold, controlled cooling, correct cutouts, stable components, and regular inspection are all part of the final product.

When you are willing to transform a case concept into a product that is production-ready, Junchi can assist you in the transition of your concept from design and tooling to scalable production. Begin your own project with Junchi and create your next protective case by basing it on actual manufacturing needs, not just looks.
