How are Laptop Cases Made? Manufacturing Process Guide

What is the Process of Making Laptop Cases? A Tour of the Production Process

A laptop case can appear to be easy to make, but it requires a lot of engineering to come up with a case that fits perfectly, keeps the device safe, and yet looks appealing. Between the initial CAD drawing and the final inspection, various manufacturing phases collaborate to produce the finished product.

Then, what is the process of making laptop cases? It depends on the kind of case. A hard shell of a laptop can be injection-molded polycarbonate, whereas a soft cover can be made of fabric, foam, or other flexible materials. There are high-end designs that combine materials to provide another touch and degree of protection.

Junchi manufactures laptop cases by designing its products, tooling, selecting materials, molding, finishing, and quality control. Its existing product line consists of laptop cases, sleeves, and custom protective accessories, and OEM and ODM development is offered.

It Starts With Product Design and CAD

Product development is the initial step in the manufacture of laptop cases. The engineers require precise details of the target laptop, such as its length, width, thickness, ports, hinges, corners, ventilation, and other physical characteristics. A CAD model is then developed to specify the geometry of the case.

In the case of a hard shell, the design can consist of:

• Top and bottom shell sections.
• Snap-fit points
• Ventilation openings
• Port cutouts
• Hinge clearances
• Logo areas
• Anti-slip feet
• Reinforced corners

Of importance is tolerance. An overly tight case may be hard to fit, whereas too much space may cause it to wander around the equipment. At this point, Design for Manufacturing, or DFM, is also taken into consideration. The wall thickness, draft angles, ribs, clips, and other characteristics must be compatible with the manufacturing technique chosen.

Selecting the Right Material for Cases

The choice of materials significantly influences the end product. It has an effect on weight, stiffness, impact resistance, appearance, surface feel, and manufacturing behavior.

Typical laptop case materials are:

• Polycarbonate (PC): Polycarbonate is a common choice in rigid shells due to its ability to be both stiff and impact-resistant.
• TPU: A thermoplastic that is flexible and is used when shock absorption and elasticity are a consideration.
• ABS: Applied in most molded products where dimensional stability, toughness, and cost must be traded off.
• PU leather: It is a common exterior finish used when a more sophisticated look is needed that is softer.

It is not merely a matter of which material is the strongest. The engineers also take into consideration the melt flow, shrinkage, cooling behavior, surface finish, and compatibility with the manufacturing process.

Making the Mold of a Hard Laptop Case

In the case of injection molded products, tooling is among the key processes in the manufacture of laptop cases. The cavity that shapes the plastic is contained in a mold. The engineers initially look at the CAD model and decide how the part will be split, the location of the parting line, and the flow of molten material into the cavity.

The mold design can consist of:

• Core and cavity sections.
• Gates
• Runners
• Ejector pins
• Cooling channels
• Venting
• Guide systems

The filling of the cavity by plastic can also be studied using mold flow analysis. This will show possible weld lines, air traps, filling issues, and cooling issues prior to the tool going into production.

In the manufacturing model of Junchi, the custom mold development and production are done in its integrated manufacturing structure.

What Goes into Laptop Case Production Beyond Mold Making

The primary structure is formed by molding, but the part can still need a number of secondary processes. The laptop case production process can include:

• Trimming excess material
• Removing gate marks
• Surface treatment
• Printing
• Logo application
• Attachment of leather or fabric
• Installation of feet or other parts.
• Final assembly

As an illustration, the Slim MacBook Case with PU Leather by Junchi and a fitted PC hard shell is based on a PC + PU material structure. The product is made of a hard polycarbonate cover and a PU leather surface, accurate holes, a snap-on design, and anti-slip silicone feet. Such construction cannot be done in a mere one-material molding operation. The shell geometry, exterior treatment, cutouts, and finishing should collaborate.

The Difference in Laptop Sleeve Manufacturing Process

Not all laptop protectors are injection molded. The manufacturing process of the laptop sleeve is typically based on flexible materials and textile construction. An average sleeve can be made by the following steps:

• Pattern development: Dimensions are determined based on the desired size of the laptop.
• Cutting of materials: Fabric, foam, lining, or other layers are cut into the necessary shapes.
• Preparation of the layers: Between the external and internal materials, protective foam or padding can be placed.
• Sewing or bonding: Panels can be stitched, adhesive bonded, or both.
• Closure installation: Zippers, elastic, magnetic closures, or other types of fastening can be installed.
• Finalizing: Before packaging, loose threads are cut off, and seams are checked.

This implies that the equipment and skills that are required in the manufacture of laptop covers can be entirely different depending on whether the product is a molded shell, sleeve, or a hybrid design.

Laptop Case Fabrication to Large-Scale Production

• The last phase is to prepare the product to be reproduced. The fabrication of laptop cases should be stable to manufacture consistent parts in hundreds, thousands, or larger quantities.
• Manufacturers track cycle time, material used, mold condition, machine settings, and inspection outcomes. Monotony of operations and consistency of production can also be assisted by automation.
• Junchi says that it has the manufacturing capabilities of in-house mold development, plastic and silicone custom mold development, structure and material engineering, surface engineering, and scalable production.

This combined strategy will minimize the amount of individual handoffs among design, tooling, and manufacturing departments.

A Closer View of a High-End MacBook Case

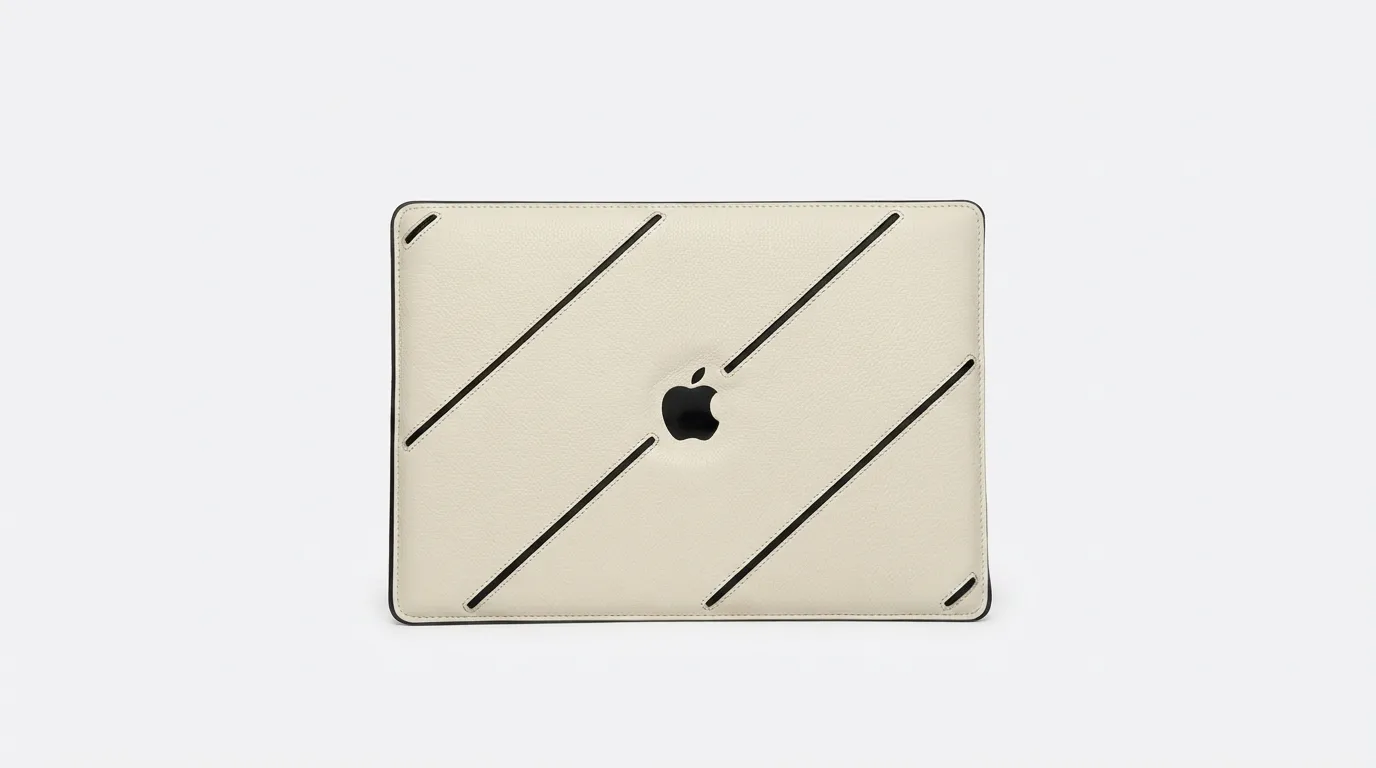

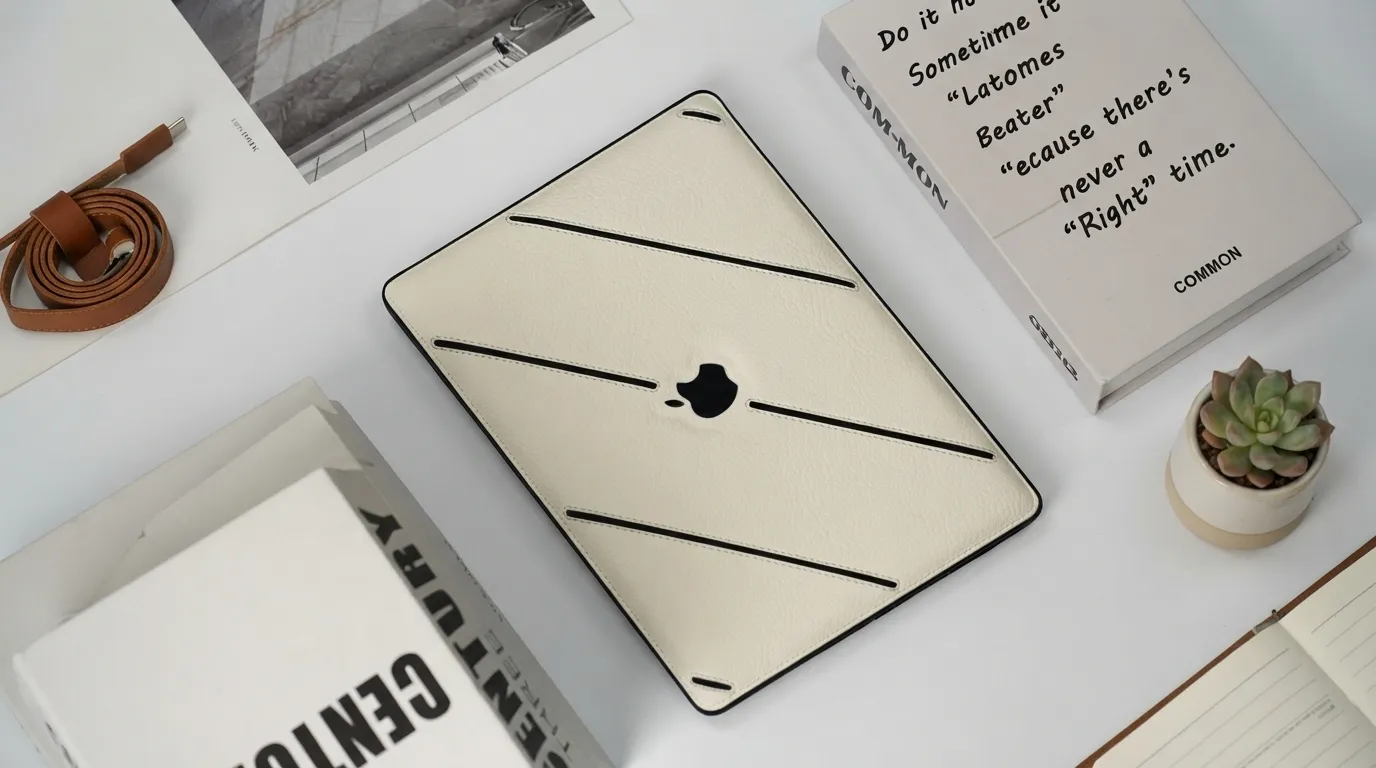

A good example of the way a number of manufacturing disciplines converge is the Slim MacBook Case with PU Leather and a fitted PC hard shell.

• In the case, a hard PC shell is used with PU leather. Its design includes a precision snap-on format, anti-slip silicone feet, snug port openings, and an exact logo cutout. The product is also aimed at business, education, travel, and technical applications.
• The product also illustrates why the decisions to manufacture a product start with the device itself. Shell sizes, holes, material arrangement, surface finishing, and branding must all be able to fit within the available space.
• It is structural engineering and exterior design that transform a simple protective shell into a complete commercial product.

Conclusion

The information on how laptop cases are manufactured shows how much effort goes into a product that can be seen as simple. Design, choice of material, DFM, mold development, injection molding, finishing, assembly, and inspection are all part of the end result. Junchi provides OEM and ODM services for tailored laptop cases, including structural design and tooling, production, and finishing.

If you are willing to transform a laptop case idea into a commercially viable product, consider Junchi as a vendor of custom laptop cases and begin the dialogue about your design, materials, branding, and production needs.
