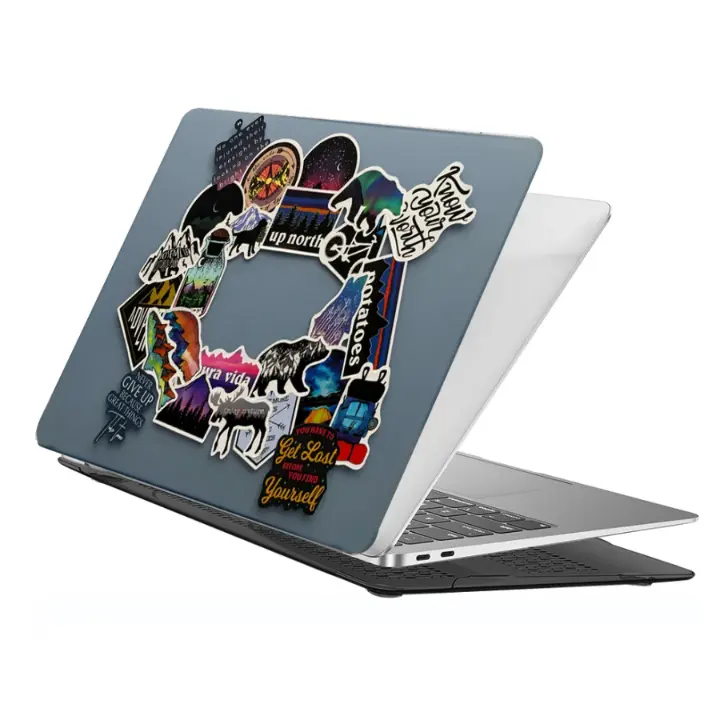

How to Test Shockproof Laptop Cases: A Practical Testing Guide

A laptop case may appear tough on the outside but fails miserably when a real drop occurs. The distinction typically boils down to structure, material, fit, cushioning, and the impact energy management of the case. This is why manufacturers and buyers require more than a visual inspection. The correct testing ought to look into laptop case strength testing, impact resistance, deformation, material performance, fit, and protection of the vulnerable parts.

In the case of OEM and custom projects, testing shockproof laptop cases should be initiated during product development and not after mass production. The process of developing the laptop case by Junchi involves structure and mold analysis, sample development, fit and protection testing, and finally controlled mass production and quality testing.

1. Begin with a Controlled Drop Test

A controlled drop test is the most direct method of testing the protection of laptops against drops. The case is aligned with the target laptop model, and then it is dropped at a specified height on a target surface. A good test cannot be based on a single drop. The various orientations reveal various weaknesses. An effective test sequence may consist of:

•          Flat-bottom impact

•          Flat-top impact

•          Edge impact

•          Corner impact

•          Repeated drops

•          Checking after every strike

The drop height, surface, number of impacts, and acceptance criteria should be specified based on the intended use of the product and the required testing. Inspect the shell after each impact, checking it against cracks, loose parts, permanent deformation, and separation. The laptop itself is also to be examined regarding movement, visible damage, and functional issues.

2. Measure Impact Resistance of Laptop Case

The impact resistance of the laptop cases is not merely whether the outer shell will survive. An effective protective system must assist in controlling the energy generated when the laptop collides with a surface.

• When testing the performance of a laptop case, engineers can test the deformation of the case when impacted and whether the deformation is beneficial in distributing the load instead of passing the load directly to the device.
• Useful measurements can include acceleration, deformation, impact energy, and structural damage. In laboratory testing, an accelerometer or other appropriate sensor may be utilized in the event that quantitative impact data is needed.

This method provides manufacturers with a better idea of how to test shockproof laptop cases than merely examining whether the case appears intact.

3. Examine Case Materials

• The choice of materials significantly influences the impact behavior and strength of the laptop case materials. Junchi lists a few of the materials that are used in the protection cases of laptops, such as polycarbonate (PC), TPU, silicone rubber, EVA foam, ABS plastic, and PU or synthetic leather.
• Polycarbonate may be used to offer a stiff outer shell, and TPU may be used to offer flexibility and shock absorption. Silicone rubber may also provide soft cushioning and grip, and EVA foam may serve as an internal buffer layer.

A shock-absorbing laptop case can be made of more than one material since various layers can do various tasks. To illustrate, an outer shell can dissipate an impact, and an inner layer that is softer can help mitigate the force on the laptop. This is among the reasons why hybrid construction is prevalent in the design of protective cases.

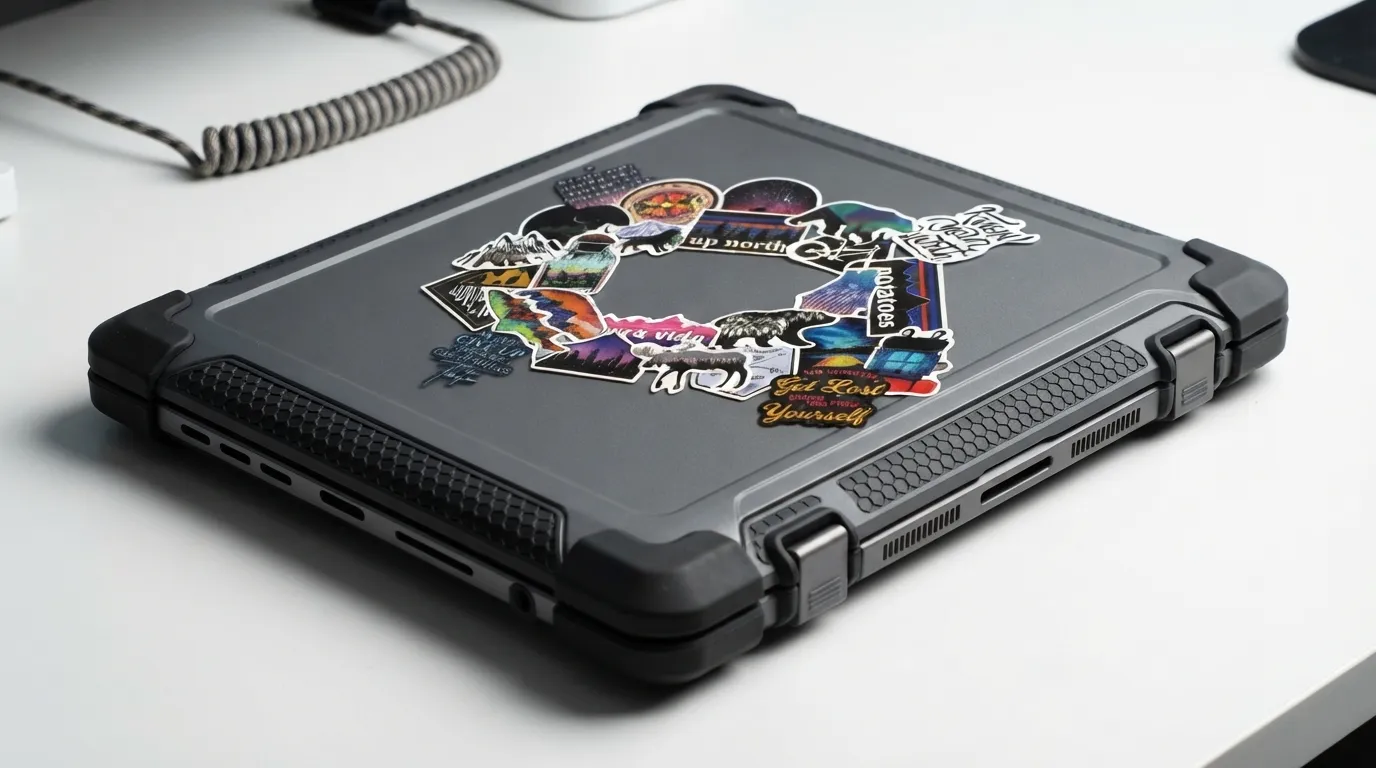

4. Check the Corner Protection

During an accidental drop, corners frequently get high loads locally. That is why the protection of laptop case corners should be inspected separately. Inspect corners that are reinforced, flexible bumpers, air gaps, internal cushions, or other features that are meant to handle impact.

• When testing the laptop protective cases, use the corners of the case as a controlled test sequence. Then, inspect for cracking, permanent deformation, separation of materials, or loss of fit.
• The laptop-case line of Junchi incorporates protective designs that are based on impact protection, secure fit, internal cushioning, and various levels of protection. The information posted on its products indicates that internal cushioning may be useful in distributing the impact forces and decreasing the direct shock to the device.

5. Deformation and Cracking Test

A case does not necessarily fall apart into pieces. In some cases, it is permanent deformation. The deformation of the laptop case may alter the fit around the device, disrupt ports or ventilation, or offer less protection on the next impact. Compare critical dimensions to the original specification after every test. Pay attention to:

•          Corner geometry

•          Shell flatness

•          Hinge clearance

•          Port openings

•          Screen clearance

•          Closure and attachment points

•          Internal cushioning position

The resistance to cracking of laptop cases should also be evaluated in the vicinity of thin sections, corners, screw points, clips, and other stress-concentrating positions. A case that has withstood a single impact but has a structural crack might not offer the same protection when used again.

Beyond the Drop: Test the Complete Protection System

6. Check Laptop Case Structural Strength

• Structural strength of Laptop cases can be tested using controlled compression and loading tests. The idea is to observe the behavior of the case under the influence of external pressure.
• This is important in transportation. A laptop can be put in a bag, under other equipment, or be put under pressure on a desk or in a vehicle. The test must document excessive bending of the shell, cracking, loss of attachment points, or excessive pressure on the laptop.

In case of rugged products, the rugged case testing of laptops may also involve vibration and environmental exposure if they are similar to the target application.

7. Evaluate Screen and Device Protection

The outside shell should not be the only thing that is covered. Screen protection for laptop cases should also be considered. Test the clearance of the display, hinges, lid edges, and corners. The case must not be too tight and cause undesired pressure on the screen.

The laptop must be in the right place within the protective structure. Junchi explains that device fixation is a significant aspect of laptop-case design since movement within the case may add to damage in case of impact.

8. Perform Fit and Functional Testing

Impact testing is not applicable in cases that do not fit. When conducting quality testing on laptop cases, compare the actual model of the laptop with the approved dimensions. Check the lid, hinges, ports, buttons, vents, and other functional areas.

• A protective case must not introduce new issues in an attempt to solve an old one. As an example, over-coverage of a ventilation opening may influence normal heat management.
• The quality process published by Junchi consists of drop and fit testing, material inspection, aging testing, in-line quality control, and final inspection prior to shipping.

9. Integrate Testing into Production

• Testing should not be done at the end of production. It must be included in the product-development cycle.
• The workflow recorded by Junchi follows the requirement review, structure and mold evaluation, sample development, testing, feedback, and finally mass production. Its manufacturing data also emphasize in-house mold development and quality checks during material inspection up to final inspection.

In the case of brands designing a custom protective case, the process assists in aligning the design choices with the real-world test outcomes.

Conclusion

The truth of how to test shockproof laptop cases is that it is all about knowing what occurs when controlled stress is applied to the actual product design. Impact behavior is revealed by drop tests, material testing by how the structure responds, and fit inspection by ensuring that protection does not affect normal use of the laptop.

In the case of brands that are creating OEM or custom products, Junchi offers laptop-case development that includes materials, structure, mold development, sampling, drop and fit testing, quality control, and production. Design a laptop case based on actual protection needs. Get in touch with Junchi to talk about your next project for a protective case in terms of custom materials, structural design, mold development, sampling, and production.
