How Laptop Case Molds are Made: From CAD Design to Mass Production

When a laptop case is installed around a device, it may appear to be simple. A well-calculated mould is behind that clean shell.

The shape, dimensions, wall thickness, surface detail, openings, ribs, and other characteristics of the completed case are controlled by the mold. Even a good plastic material can make a poor-fitting product if the tooling is inaccurate.
The process of how laptop case molds are made is therefore based on some related steps. These include product design, CAD modeling, mold engineering, machining, testing, adjustment, and final production.
In the case of a professional manufacturer of laptop cases, it is not merely to create a mold that will create a single sample. The tooling should generate repeatable parts when it is used in repeated injection molding.

What is a Laptop Case Mold?

A laptop case mold is a high-precision tool that is used to mold molten plastic into a particular laptop shell or protective element. It has a cavity and core in most instances, which determine the external and internal geometry of the part.

According to Junchi, its manufacturing process involves custom mold development, structural design, injection molding, and mass production. Its published quality information also mentions that its mold-making team has produced up to 100,000 molds and can regulate the error of the mold to within 0.01 mm.

Step 1: Product is the Starting Point of the Laptop Case Mold Design

Engineers must learn about the product before cutting steel. The initial step in designing a laptop case mold typically entails the size of the laptop, protection needs, material, finish on the surface, and functionality. In the case of a custom project, the buyer can supply a 3D CAD model, STEP file, technical drawing, physical sample, or even an early product concept.

These requirements are then translated into a production-ready structure by the engineering team. Here, CAD mold design comes in. A 3D CAD model enables engineers to verify the shell thickness, fit, corners, ribs, openings, and connection points prior to producing the tooling.
The process of custom laptop cases at Junchi begins with requirements, followed by structure and mold evaluation, and finally sample development. This kind of design thinking can also be applied to a laptop housing mold, laptop enclosure mold, or a special protective shell.

Step 2: Designing the Mold Structure

After approval of the product model, engineers proceed to the design of the mold structure. It is here that the 3D product is turned into a viable injection mold.

The cavity, core, parting line, runner system, cooling channels, location of the gate, and ejector system are determined by the mold designer. Every choice has an impact on the quality of production.

Cavity, Core and Parting Line

The plastic part is molded to create a mold cavity on one side, and the other side is a mold core design. The point where the mold is parted after the injection cycle is the mold parting line. Ideally, it is supposed to be placed in a position where it is least seen, and it does not disrupt critical functional surfaces.

Flash or visible marks can be formed by poor placement of the parting line. Proper placement simplifies the part to be molded, ejected, inspected, and finished.

Draft Angle, Ribs and Wall Thickness

A draft angle aids the component that is being molded to come out of the mold without adhering. The plastic shell may slide over the surface of the mold when it is ejected without adequate draft.
The thickness of the wall is also important. When the wall is excessively thick, the cooling process may be irregular, and sink marks and other flaws can occur. When it is excessively thin, filling can be hard and the part might not be as rigid as necessary.
Rib design provides structural support without over-thickening the entire shell. Mounting points, screws, inserts, or internal connections can be mounted on a boss design. Another consideration is the snap-fit design. A well-designed snap-fit design can enable components to fit together without extra fasteners, and undercut design can necessitate special mold mechanisms.

Step 3: Mold Flow and Gate Planning

Plastic must flow through the mold in a regulated manner. The position of the gate is thus of great significance. It dictates the flow of molten plastic into the cavity and affects the filling behavior, weld lines, pressure, cooling, and surface appearance.

Mold flow analysis can be used by engineers prior to machining the final tooling. Potential filling problems can be identified by this simulation, and the injection point can be optimized.

Balanced material flow is of specific concern to a large laptop shell since the component possesses a relatively large surface area. The runner system also needs to be sized according to the selected material and injection requirements. The design of the cooling channels is also crucial since plastic needs to cool down to allow the part to be ejected.

Step 4: Production of the Real Tool

Once the design has been approved, the physical mold can be produced. This is what laptop case mould manufacturing is all about. An average tooling process may involve:

1. Tooling material (steel) is ready.

2. The main geometry is produced by CNC machining.

3. EDM machining works with fine or challenging features.

4. Cavities and cores are finished.

5. Cooling channels and ejector systems are ready.

6. Components are assembled.

7. The mold is checked.

8. Trial molding is done.

The complex geometry of the mold, as shown in the CAD drawing, is created by precision CNC machining. Electrical Discharge Machining (EDM) may be applicable to complex details and locations that are hard to cut with traditional cutting tools.

In its manufacturing process, Junchi recognizes precision mold manufacturing, die sinking, injection molding, customer confirmation, and mass production.

Step 5: Trial Molding Tests the Tool

A finished mold has not been machined. Trial production is the next step. In the trial molding process, plastic is injected into the new laptop injection mold to form preliminary samples. These samples are inspected by engineers in terms of dimensions, fit, surface quality, deformation, and other problems. The possible issues may be:

• Flash

• Warpage

• Sink marks

• Short shots

• Weld lines

• Poor filling

• Ejection marks

• Uneven cooling

• Dimensional variation

Before final production, the mold can be adjusted. The workflow of the laptop case that Junchi has developed consists of sample development, testing of fit and protection, customer feedback, and approval before mass production.

Injection Mold to Finished Laptop Case

After the tooling is tested, it can be transferred to laptop injection molding. The plastic that has been selected is heated until it reaches the right processing condition. The material is then forced into the mold by the injection molding machine at a controlled pressure.
The material is then cooled in the cavity. The mold is opened, and the ejector system is used to remove the complete part. In the case of laptop protection products, the most popular materials are polycarbonate, ABS, TPU, silicone rubber, EVA foam, and a mix of these materials. Junchi enumerates PC as a rigid structural material and TPU as a flexible material to absorb shock and distribute impact.

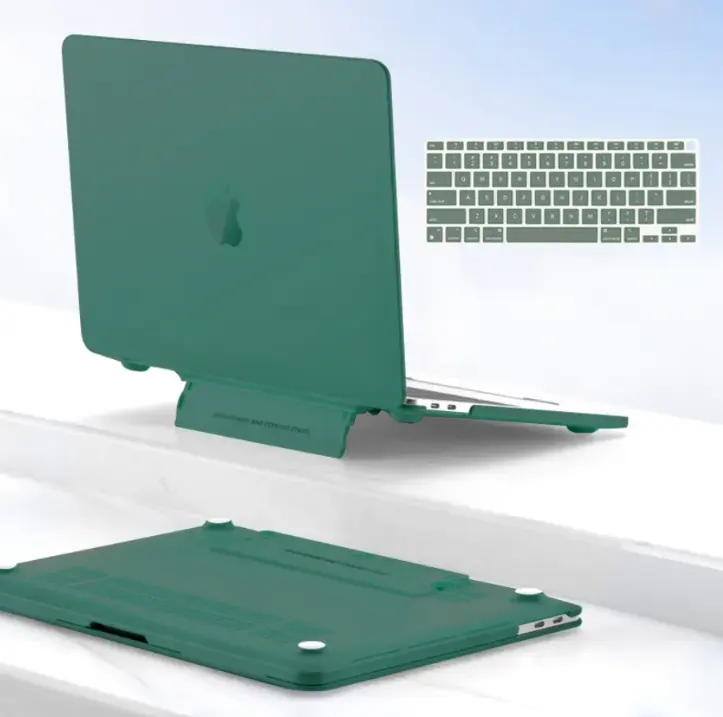

The result can be a rigid laptop cover mold product, a hybrid protective shell, or a more specialized case with functional features.

Conclusion

A mold is more than a metal tool. It is the material basis of the finished product. When creating a hard-shell laptop case, foldable stand case, protective enclosure, or a custom-labeled laptop accessory, the appropriate tooling can assist in converting your design into repeatable production.

Junchi assists with structural design, laptop case molds are made, sampling, injection molding, quality inspection, and mass production. Discuss your upcoming project and its custom laptop case manufacturing solutions or manufacturing capabilities.
