Founded in China and backed by over 23 years of manufacturing experience, Junchi specializes in the design and production of protective cases for digital devices. From rugged laptop cases to precision-molded phone and tablet shells, we work with global brands, distributors, and OEM partners to deliver reliable, scalable protection solutions.
The success of an injection-molded product is normally determined long before the first mold is made. A product may look beautiful on a computer screen, but when it cannot be produced in an efficient, consistent, and cost-effective manner, the problems will soon be evident in the production process. In this case, DFM for injection molding is required.
Design for Manufacturing (DFM) is the design of a product that is scrutinized to be manufactured effectively without compromising on quality, performance, and cost objectives. DFM is used in the injection molding industry to enable engineers to detect possible production issues at the initial stage, which saves them the cost of making changes to the tooling and prevents delays.
In the manufacturing of consumer electronics accessories, industrial parts, automotive parts, and protective laptop cases, the manufacturers rely on DFM principles to improve the production outcome and reliability of the products.
Firms such as Junchi integrate engineering inspection, tooling and manufacturing knowledge into product development so as to help customers to move concept to production in a more efficient manner.
One of the most common manufacturing processes used in manufacturing plastic parts is injection molding. It entails the injection of a thermoplastic material in a liquid state into a mold cavity under well-regulated conditions.
Although the process is efficient, inefficient product design can present manufacturing difficulties such as:
An effective design review of manufacturability in injection molding helps to detect these risks prior to the construction of the tooling.
Engineers do not correct the problems once a mold has been made, but rather simplify the design during the development stage, which is time- and cost-saving.
An excellent DFM for injection molding overview will take into account all the characteristics of part geometry, selection of material, and manufacturing requirements. The objective is to ensure that the product is moldable in terms of appearance, functionality, and dimensional accuracy.
Engineers typically evaluate:
Advanced engineering software such as Autodesk Moldflow, Moldex3D, and SolidWorks Plastics are typically used to aid the review process.
One of the most important elements of plastic part DFM is maintaining uniform wall thickness. The cooling rates are not even when the change in wall thickness across a part is large.
This can lead to:
The recommended wall thickness of most thermoplastic materials is 1.5 to 4 mm, depending on the resin and the use. Ribs and gussets are commonly employed by engineers as an alternative to thick walls to enhance strength without forming molding problems. Frequent wall thickness also aids in improving material flow, cooling, and quality of the product.
All the injection molded parts will be removed from the mold after cooling. Lack of adequate draft angles can result in parts sticking to the surfaces of the molds and being damaged in the ejection process.
Common draft recommendations are:
The draft angles might be considered a minor design aspect, yet they contribute to successful manufacturing to a great extent. This is one of the major factors to consider when conducting DFM analysis and injection molding reviews.
The injection mold design that is to be used in the manufacturing process is geared towards ensuring that the production process becomes easier without affecting the product functionality. Some features that engineers are likely to consider are:
Ribs are used to provide strength to the structure and not to increase the thickness of the wall. The thickness of the ribs is typically advised to be 50-60 percent of the thickness of the adjacent wall. Proper rib design helps in reducing sink marks and increases rigidity of parts.
Bosses are normally used with screws and assembly features. Badly constructed bosses might cause stress concentrations and cosmetic defects. Boss geometry is adjusted by engineers to improve manufacturability and durability.
Acute edges limit the flow of materials and enhance stress concentrations. The flow of the plastic is improved by the addition of generous radii, and the part is strengthened.
Good manufacturers follow the laid-down DFM principles of injection molding to maximize the quality and production efficiency of products.
Some of the best recommendations are as follows:
These principles can be used at an early stage to enhance the outcomes of manufacturing.

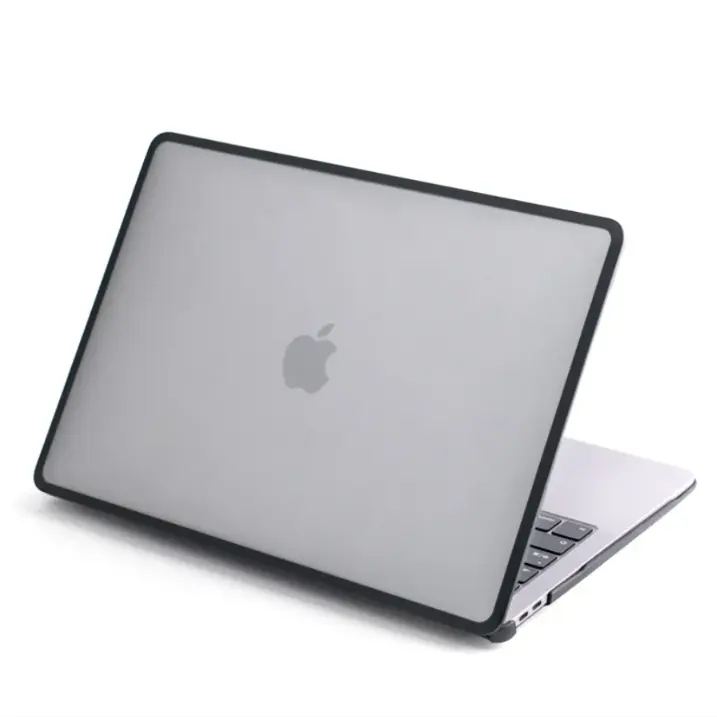

The Minimalist TPU + PC MacBook Case provided by Junchi illustrates how careful planning of engineering and manufacturing can lead to the performance of the product. The design has a high-level polycarbonate shell and TPU impact protection, a combination of strength, lightweight structure, accuracy of fit, and aesthetics.
DFM reviews of products such as these are valuable in assessing:
These factors can also be considered by manufacturers before production, as they can improve the quality of their products and manufacturing efficiency.
The most successful products are not only designed to look good. They are made to be efficient in production, durable, and high-quality. An efficient DFM process helps manufacturers identify challenges early enough, reduce the risk of production issues, and manufacture products that deliver our desired performance. When you need to create custom plastic components, protective laptop cases, or consumer electronics accessories, collaborate with Junchi to leverage engineering-based manufacturing know-how.
DFM for injection molding may be the most economical to use at the beginning of the project and the most successful in production.
